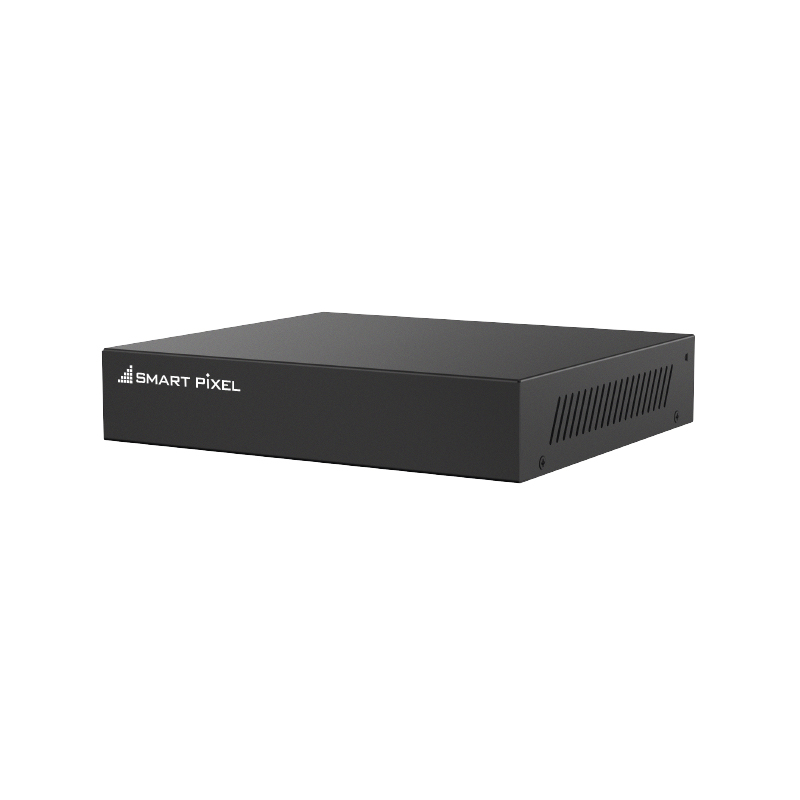

NVR3109-4P

NVR 9 canales con grilla en pantalla de 9 canales Incluye 4 canales PoE ( se pueden conectar 4 camaras en forma directa sin necesidad de switch, etc) System Main Processor ARM Cortex A7 Processor Operating System Embedded LINUX Video Input 9CH(8MP/6MP/5MP/4MP/3MP/1080p/1280x1024/960p/720p/D1/CIF) Audio Input N/A Output N/A Audio Bit Rate 64kbps Audio Compression standard G711U, G711A Intercom N/A Alarm Sensor Input N/A Output N/A Motion Detection 9 Channel, MD Zones: 396 (22 × 18) Trigger Events Recording, Email, FTP, Snapshot and Screen Tips Display HD Output1 1920*1080/1280*1024/1280*720/1024*768 HD Output2 N/A VGA N/A Display Split 9CH/8CH/6CH/4CH/1CH Digital Zoom YES OSD Camera Title, Time, Recording, Motion Detection, Event Alarm Recording Video Compression H265/H264/H265+/H264+ Resolution 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480) Record Rate PAL: 4K@8CHx25fps,5MP@9CH×25fps,4MP@9CHx25fps,3MP@9CH×25fps,1080P@9CH×25fps, 960P@9CH×25fps720P@9CH×25fps, D1@9CH×25fps NTSC: 4K@8CHx30fps,5MP@9CH×30fps,4MP@9CH×30fps,3MP@9CH×30fps,1080P@9CH×30fps, 960P@9CH×30fps, 720P@9CH×30fps, D1@9CH×30fps Record Mode Manual\Timer\Motion Detection\Smart Event Playback & Backup Local Sync Playback 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps,9CH 720P@30fps Decode Capability 1080P(1920x1080)@120fps Remote Sync Playback YES Search Mode ALL, Timing Video, Motion Detection, Tag search,Smart Event,Pictrue,Log Playback Functions Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio Backup Mode USB Device/Network Network Interface 1xRJ45 10M/100M(self-Adaptive Ethernet Interface) Incoming Bandwidth 72Mbps Outgoing Bandwidth 48Mbps Network Functions IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE Onvif Profile S, Profile T Web Browser Edge,IE8-11, Google Chrome , Firefox ,Safari CMS Software Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS Cloud Support Yes Smart Phone iPhone, Android POE 4x Independent 100Mbps POE Network Interfaces(Output power AT mode 30W per port), 45/78 line order, Total Power Output= 45W, Support Plug and Play, Support network cable extended mode Max. 200M WIFI N/A Storage Interface Type 1 SATA Hard Disk Interface (3.5" SATA) Capacity Up to 8TB capacity eSATA N/A General Language UI Simplified Chinese, Traditional Chinese,English, Russian,Deutsch, French, Portuguese, Spanish, Italian, Korean, Janpanese,Ukrainian, Polski,Dutch, Greek, Czech, Arabic USB Interface 2 USB 2.0 Interfaces RS485 N/A Power consumption DC48V/1.36A = 6W (Without Hard Disk and POE) Working Environment -10?~50?, 10%~90%(humidity) Product Dimension(W×D×H) 200 x 175 x 40mm Net Weight 1.5kg(without HDD)
