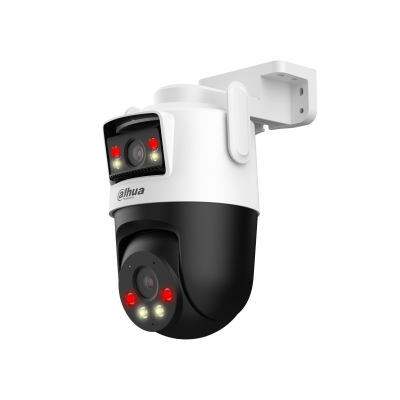

P3D-3F-PV

The Picoo Dual Series, which is under the Dahua Wireless series, consists of cameras equipped with both fixed lens and PT lens. This unique combination allows for simultaneous live monitoring of two areas, providing coverage from multiple angles. Leveraging its dual lenses, the camera performs smart detection using advanced functions like AI human and vehicle detection, effectively minimizing false alarms. Additionally, with the assistance of the PT lens, the camera has the capability to automatically track moving targets. The camera also triggers sound and light alarms upon detecting an intrusion, promptly sending notifications to the mobile client to ensure you remain up to date regardless of your location. These cameras are widely utilized in small-scale scenes such as shops and restaurants. Camera Fixed Lens Image Sensor 1/2.8? CMOS Max. Resolution 2304 (H) × 1296 (V) Illumination Distance Up to 30 m (98.43 ft) (IR) Up to 20 m (65.62 ft) (Warm light) Illuminator Number 2 (IR LED); 2 (Warm light) Angle Adjustment -10° to 15° Lens Type Fixed-focal Focal Length 2.8 mm Max. Aperture F1.6 Field of View H: 95°; V: 53°; D: 110° PT Lens Image Sensor 1/2.8? CMOS Max. Resolution 2304 (H) × 1296 (V) Illumination Distance Up to 50 m (164.04 ft) (IR) Up to 40 m (131.23 ft) (Warm light) Illuminator Number 2 (IR LED); 2 (Warm light) Angle Adjustment Pan: 0° to 352°; Tilt: 0° to 90° Lens Type Fixed-focal Focal Length 6 mm Max. Aperture F1.6 Field of View H: 53°; V: 29°; D: 62° Intelligence Human Detection Yes Vehicle Detection Yes Audio and Video Video Compression H.265 Video Frame Rate Main stream: 2304 × 1296@15 fps sub stream: 640 × 360@15 fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Video Bit Rate H.265: 512 kbps–4096 kbps Day/Night Auto(ICR)/Color/B/W WDR DWDR Motion Detection Yes Image Rotation 0°/180° Built-in MIC Yes, built-in Mic Built-in Speaker Yes, built-in speaker Audio Compression G.711a Network Network Port RJ-45 (10/100 Base-T) Wi-Fi IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G,?20dBm@2400-2483.5MHz Wi-Fi Pairing Bluetooth pairing Storage Micro SD card (support max. 256 GB) Management Software DMSS Mobile Client iOS;Android General Certifications CE Power Supply 12 VDC Power Consumption Basic: 2.3 W Max.: 10 W (pulling stream+ IR + siren and light active deterrence) Operating Temperature –20 °C to +50 °C (–4 °F to +122 °F) Operating Humidity ?95% (RH), non-condensing Protection IP66 Casing Material Plastic Product Dimensions 159.4 mm × 119.1 mm × 210 mm (6.28? × 4.69? × 8.27?) (L × W × H) Net Weight 585 g (1.29 lb)
